HOW TO READ AN ISOMETRIC PIPING DRAWING

1. WHAT IS AN ISOMETRIC PIPING DRAWINGS?

2. ISOMETRIC VALUE
3. ISOMETRIC PARTS
   3.1 Title block
   3.2 The pipe design
   3.3 Material List
4. INTRUMENT DEPARTAMENT SCOPE



--------------------

Note: The P&IDs are useful documents  to undestand the process and to check the general characteristics of the pipes, instruments, valves and others devices.
But we can not know the plant design. To know the pipe actually designed  (form, lenght, size, ...) It is necesary to check the isometric piping drawings.

Isométrica de tuberías

1. WHAT IS AN ISOMETRIC PIPING DRAWINGS?

The isometric drawings are a group of documents (tens or hundreds) that are used to design pipe system in an industrial plant.


isometric drawing

2. ISOMETRIC VALUE

The isometrics are the most relevants document in piping department.

These documents define the piping material list, and they can be a bottleneck in any project. Also, mistakes in this document could imply high costs.

The pipe design is afected by the instrument and valves requirement, therefore, instrument department should give support to revise the isometric drawing.

3. ISOMETRIC PARTS

3.1 Title block

Isometric drawing must have a standard title-block as other project oficial drawings.

isometric Title block

In the title-block should be indicated:

- Pipe code. Each pipe will be coded and included in the isometric drawings. For example: "04LBB20BR0101"

- Page number and total page used to represent all the pipe. For example"4 of 4"

- Pipe design conditions. For example: "568ºC / 36,2bar g"

- Pipe Specification  For example: "E340"

- Pipe diameter. For example  " 22" ".

- Revision. For example  " 2-For construction".

- People in charge of document (Client, engineering, promoter, etc...)

-Project name

-Project system

3.2 The pipe design

The document main part is the pipe drawing.

isometric drawing

In the drawing is indicated:
- Dimensions

- Relative coordinates

- Areas with insulation or traced areas

- Location of supports

- Orientation

- Required angles

-Etc..

3.3 Material List

In the list is indicated:

- Description

- Quantity

- Material

- Thickness

-Etc..
isometric digram


4. INTRUMENT DEPARTAMENT SCOPE

Usually, there are fewer human resources in each project, therefore  is very little time to revise isometric diagrams. But there are some minimun points that we recommend to check and coordinate with pipe department:

- Define the scope of the terminal points between piping and instrumentation.

- Locate and design the instrument connection

- Valve layout and connection





By: Julio.C Fernández Losa 12/05/2016

7/23/2018

HOW TO READ GENERAL UNIFILAR DIAGRAM

1. WHAT IS A GENERAL UNIFILAR DIAGRAM?
2. SYMBOLOGY LEGEND
3. REPRESENTATION OF ELECTRICAL EQUIPMENT
  3.1. Representation of electrical conductors
  3.2. Representation of breakers
  3.3. Representation of disconnectors
  3.4. Representation of other electrical equipments
4. SOME BASIC CONCEPTS
  4.1. Difference between disconnectors, contacts and breakers
  4.2. Breakers
  4.3. Feeder or control device
  4.4. Local and remote control
  4.5. Automatic or manual
  4.6. Electrical protection devices
  4.7. Measuring devices
5. MAIN POINTS OF THE GENERAL ELECTRICAL DIAGRAM
  5.1. Connection to the mains network
  5.2. Substation
  5.3. Main Transformer
  5.4. Electrical Building
  5.5. Electrical cabinets
  5.6. Low voltage transformer
  5.7. Low voltage distribution cabinet
  5.8. MCC
  5.9. Essential electrical system
  5.10.  Safety electrical power
    5.10.1. Direct current
    5.10.2. Uninterrupted Power System (UPS)
6. REDUNDANT POWER





1. WHAT IS A GENERAL UNIFILAR DIAGRAM?

HOW TO READ GENERAL UNIFILAR DIAGRAM

“The General Unifilar Diagram" indicates the most relevant electrical information in an industrial plant.


unifilar drawing

This document is under scope of the electrical department, however any instrumentation and control engineer must be able to understand it in order to do his work correctly.

electricidad versus I&C

All the electrical conductors (2, 3 or more) are indicated with only one line, and for this reason it is called unifilar diagram.

Unifilar I&C


As a general rule, the unifilar diagram is drawn following the energy flow, from the top down.


Therefore, network connection will be on the top and the final consumers will on the bottom.

Unifilar diagram


2. SYMBOLOGY LEGEND


UNIFILAR SYMBOLOGY LEGEND

It is easy to find
electrical symbology  normative (for example UNE 606179), nevertheless each project has its peculiarities, so it is more appropriate to check each project symbology.

3. REPRESENTATION OF ELECTRICAL EQUIPMENT

3.1. Representation of electrical conductors



Unifilar Conductor

3.2. Representation of breakers

Unifilar breaker drawing

3.3. Representation of disconnectors

disconnectors unifilar drawing

3.4. Representation of other electrical equipments

electrical devices representation unifilar

4. SOME BASIC CONCEPTS

4.1. Difference between disconnectors, contactors and breakers


disconnectors, contactors and breakers representation unifilar

Breaker: Electromechanical equipment  is able to maintain or interrupt the electrical current.

The electrical protection is its main function, although it can be used for control functions.

DisconnectorElectromechanical equipment is able to keep the installation isolated.

The safety of people and equipment is its main function. Disconnectors are not usually designed to interrupt the electrical current.

Switch disconnector: Electromechanical equipment is able to isolate and interrupt.

Contactor: Electromechanical equipment is able to maintain or interrupt the electrical current.

The control is its main function, these devices are designed to do many operations.

Note: The contactors are usually installed downstream of a breaker.


breaker and contactor representation

Note: Sometimes the contactor isn't installed and a breaker is used directly to control. For example, if a very few operations (open/close) are required, It shouldn't be mandatory to have an electrical contactor.

4.2. Breakers

There are several types of electrical breaker in the industrial plants.

There are simple breakers (like lighting breaker), complex breaker (like the main breaker used to connect with the electrical network), there are single-phase breaker, or three-phase breakers, pressurized with air or pressurized with SF6, oil or vacuum. All these characteristics depend on voltage, technology, age...etc.

The breakers have 2 positions mainly:

- Open (It interrupts the electrical current)
- Close (It doesn't interrupt the electrical current)


breaker status

When the breaker is close, the current will be able to go downstream.

breakers representation

Nota: Be careful, if the main breaker is open, downstream equipment could maintain the voltage.

There are several redundant power supply ways in the industrial plants, and some electrical devices can store electrical energy.

Some people that don't take into account this issue die every year.

Therefore, please follow the 5 golden rules to avoid accidents:


5 golden electrical rules

Earthing is necessary for maintenance activities and earthing disconnector are usually used.

The following picture is the substation unifilar diagram:


substation

It consists of two earthing disconnector and a breaker. If maintenance activities were required (according to the 5 golden rules ), after cut-off, interlocking, verify... the earthing disconnector will be closed (and interlocking) to ensure the safety of people.

If both earthing disconnector are closed,  any current leakage will  be discharged.

seccionadores de puesta a tierra

Furthermore , some breakers can be in test mode and/or withdrawal mode

Withdrawal mode: The breaker will be opened and it willn't be able to be controlled by anyone, neither in local or in remote.

Test mode:  The breaker will be opened and it willn't be able to be controlled. Test mode is used to test the signal.

See the withdrawal breaker representation in the following sketch:

Interruptor extraible

Note: Sometimes the electrical devices have
mechanically interlocked between themself. A broken line between both devices is used in this case

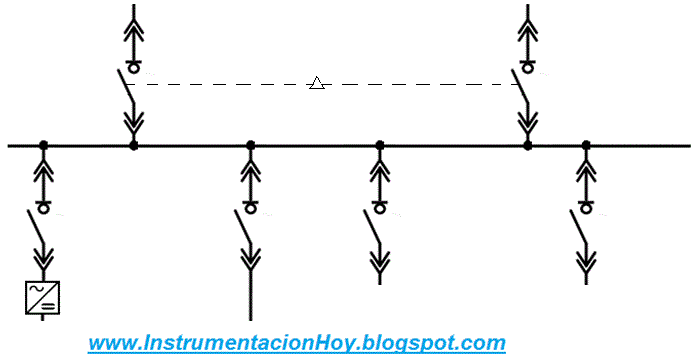

Enclavamientos unifilares

In the picture, the broken line was indicated that both breaker can't be closed at the same time. But to understand this interlock logic we will check the cabinet wiring diagram.

4.3. Feeder or control device

A feeder device is an equipment that should be always powered.


For example a TV is a feeder.

A TV is usually plugged, and with the remote control can be connected and disconnected.

There are many feeder devices in an industrial plant for example: compressor, computer, HVAC split, etc.

However there are other loads (for example the motor-pumps) that must be controlled, in these cases, o
pen and close the breaker or the contact is required to start and to stop these devices.


Unifilar instrumentation and control

4.4. Local and remote mode

Some electrical loads can be controlled on local mode, on remote mode or both.


For example, some feeder loads breakers can be only actuated on local mode.

On the other hand, for example, some motor-pump can be controlled on remote mode from the main control system (for example a DCS)  or on remote mode from the electrical cabinet.

MCC instrumentation control

Usually, there is a selector installed in the electrical cabinet to select the remote or local mode.

Therefore, on remote mode: The breaker is in the electrical cabinet (with power supply), but the open and close orders come from a remote device.

MCC unifilar diagram

These remote signals (open and close) are usually sent to an auxiliary electrical relay installed in the electrical cabinet. The auxiliary electrical relay will close the main relay which can controls the power supply contactor.



Unifilar diagram representation
The auxiliary relay and auxiliary contacts are not represented in the general unifilar diagram. If someone wants to see this information, see the cabinets wiring drawings.

4.5. Automatic or manual

The electrical devices can be in automatic or in manual mode.

In manual mode the staff can decide how and when should work  the electrical device


Remote control motor


In automatic mode the final controller (PLC, DCS, ...) will start and stop the equipment according with its programed logic.


These status Auto./Manual haven't any relation with Local/Remote.

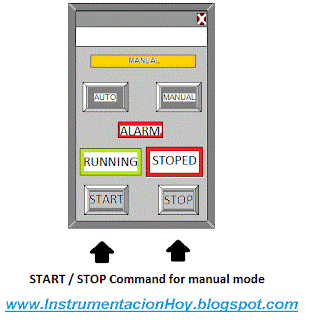

faceplate motor

Note: It looks something easy, but a lot of people don't understand the differences between  Auto / Manual and Local / Remote.


local remote automatic manual

4.6. Electrical protection devices

Many times, e
lectrical protections are represented in the electrical unifilar diagram.

The electrical protection devices can be integrated in other electrical equipments. For example, many breakers have theirs electrical protections (differential protection, or magneto-thermal protection).

All of these electrical protection could be included in the electrical unifilar diagram.


electrical protections
Others electrical protection devices are carry out by specific equipment, like protection relay.

relé de protección
The protection relay main function is to protect the electrical system.

On the one hand, electrical relays receive signals (voltage value, current, frequency, etc) from measurement instruments. And on the other hand they will send interlock signals to protect others electrical devices.

Each protection functions have a standard code number.

For example:

27- Low voltage
49- High temperature
50- Overcurrent
…etc.

As a general rule, the relays are not represented in the electrical diagram, but the protection function numbers are
 usually indicated.

relé de protección unifilar

In the previous drawing is represented that the breaker is tripped by a protection relay, with the functions 27, 49 and 50.

Note: As a general rule, the main control system (PLC or a DCS) shouldn't take any electrical protection function. The electrical protections should be managed by specialized electrical system (like the protection relay).

The scope of the main control system in a industrial plant is the process control, it isn't a safety system. Although it is designed trying to protect the people and the equipments.

4.7. Measuring devices

The most relevant electrical measuring devices are the voltage transformers and current transformers.

These measuring devices send the values to protection relays or to network analyzer.

The network analyzer can register the main electrical system parameters, and they send this information to other systems.


unfilar measurement

electrical network analyzer


5. MAIN POINTS OF THE GENERAL ELECTRICAL DIAGRAM

The most relevant electrical devices are represented in the general electrical diagram. If electrical system is big and/or complex, the
general electrical diagram could consist of several drawings.

We will be explained the following example:

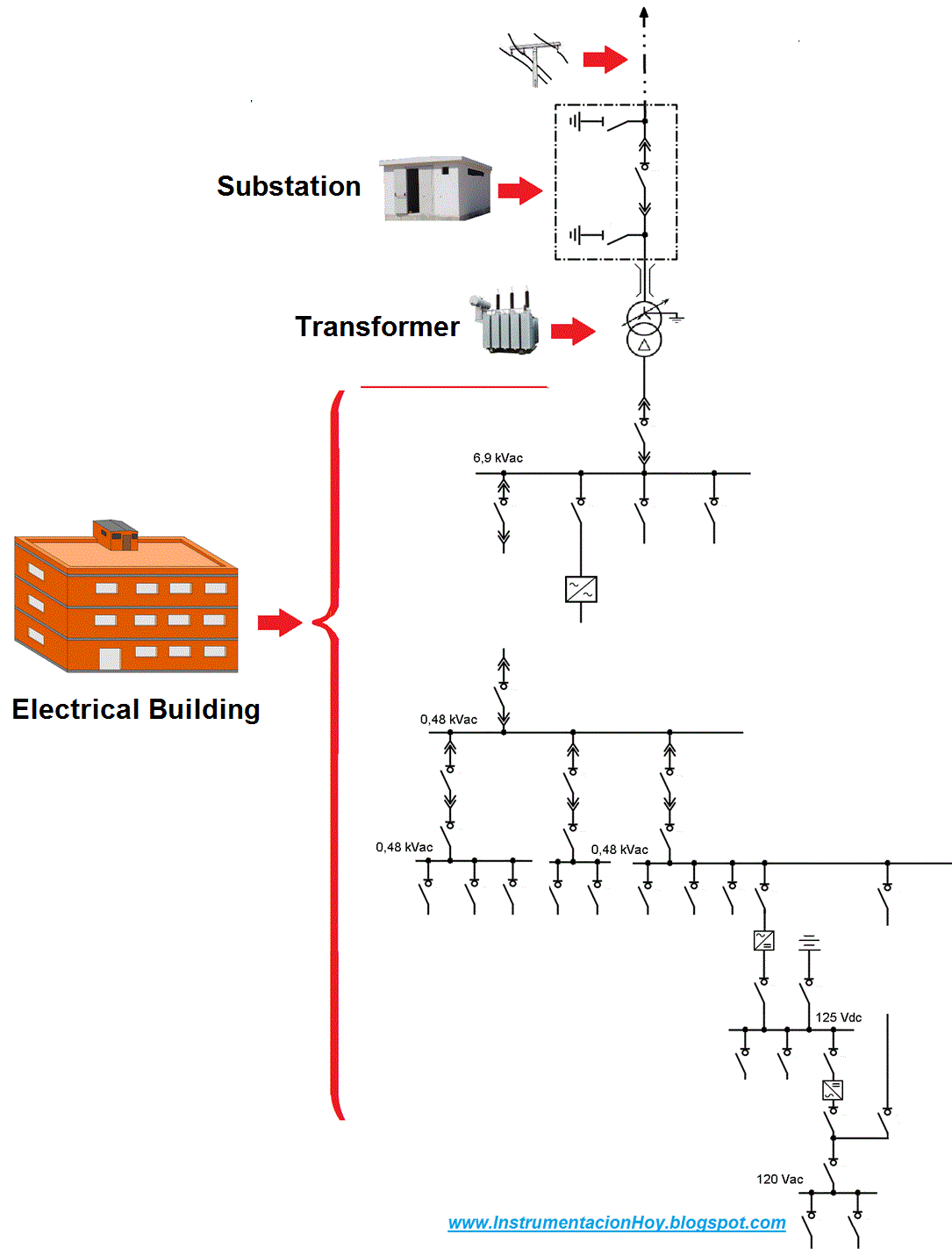

General unifilar diagram


5.1. Connection to the mains network

Usually, the industrial plants are connected electrical network.


In the example, the electrical connection is represented at the top of the drawing.

In this example, a overhead power line is connected with a small electrical substation.

Conexión a la red eléctrica
5.2. Substation

The electrical substation is an electrical area, where electrical power is measured, distributed and adapted.

The electrical substation is installed on the periphery with restricted access.

A substation will mainly consist of breakers, disconnectors, measuring instruments, etc.


It will mainly consist of electrical energy measuring equipment, switches, disconnectors, etc.

subestacion unifilar

5.3. Main Transformer

In a typical case, the electrical power supply is high voltage value (for example 230kVac).


But, the industrial plant will require a lower values (for example 6,9 kVac), in order to reduce this value a electrical transformer will be installed.

Transformador unifilar

Therefore the main transformer will reduce the voltage value.

5.4. Electrical Building

Following the example, the cable extends from the transformer to the electrical building.


The electrical building is a multi-storey building.


electrical building

The first floor is "the electrical floor" (with the electrical cabinets).

There are several independent rooms in this floor:

1º- Electrical room where are installed the main electrical cabinets (MCC, medium voltage cabinets, distribution cabinets, etc.)

2º- Power electronics room where are installed the power electronics cabinets (Rectifiers, inverters, frequency converter, etc.) The earthing connection is very important in these devices, to prevent transmitting electrical noise.

3º- Batteries room for the direct current supply

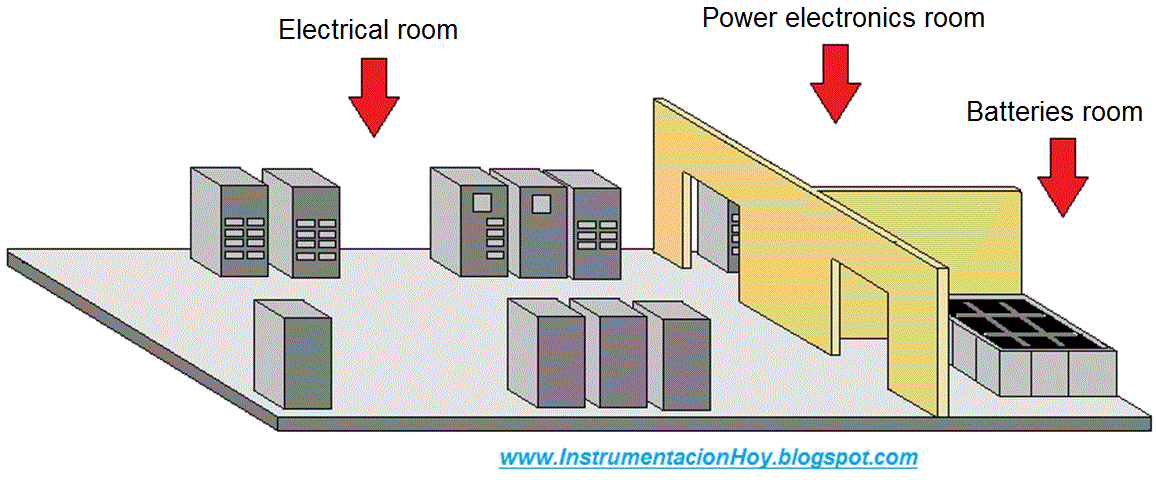

electrical floor

The second floor is "control floor".

Usually, there are two independent rooms in this floor:

1º- Electronic Room where are installed the control and communication cabinets.


2º- Control Room where are installed the operation stations. The industrial plant will be mainly supervised and controlled from this room.
instrument and control floor
unifilar drawing

5.5. Electrical cabinets

Following the diagram, the next electrical devices are the
medium voltage cabinets (installed in the electrical room first floor)
Electrical cabinets unifilar
cabina de media


Inside of medium voltage cabinets there are the following devices:

1º- The first represented device is the main breaker.

2º- The second device is the low voltage transformer breaker.

3º- The third device is a
frequency converter breaker.

4º, 5º - The others two breakers will powered directly to two motors.

Note: Usually, the motors which are powered by medium voltage system are the biggest electrical devices. In these cases higher voltage value is used to avoid big cable sections.

5.6. Low voltage transformer

As general rule, low voltage transformer is installed outside the building. This transformer reduces the voltage value from medium voltage to low voltage.


For example from 6,9 kV to 0,48 kV.
Low voltage transformer unifilar

Most industrial engines will work with this low voltage.

5.7. Low voltage distribution cabinet

Low voltage transformer powers to low voltage distribution cabinet.



Low voltage distribution cabinet unifilar

Inside of low voltage distribution cabinet there are the main breaker and several other breakers which power to others low voltage electrical cabinets.

Many electrical low voltage cabinets can be in an industrial plant, but only the most relevant will be represented in the general unifilar diagram.

5.8. MCC

Motor Control Cabinet, is an example of low voltage cabinet.

These cabinets are splitted in several small cubicles. Each cubicle could contain a breaker, a local/remote selector, push buttons, indicator lamps...

Many electrical equipments will be controlled from these cubicles.


Motor Control Cabinet unifilar

5.9. Essential electrical system

The essential electrical system can independently work in case of power supply fail.

There is emergency power generator support, which will work in case of a power failure in the electrical network.


Essential electrical system

Any electrical loads that must work in case electrical fail are connected to essential system.


Essential electrical system

Note: Usually, the emergency power generator is installed outside the building.

5.10. Safety electrical power

There are other two systems that could work in case of a power failure in the electrical network. “Direct current system” and the “UPS”.

Both systems are more restrictive than the essential system.

“Direct current system” and the “UPS” must work without disturbances in case of a power failure (essential system had zero current situation in case of a power failure).

Therefore “Direct current system” and the “UPS” are the safest power systems.

5.10.1. Direct current

This system is powered by the main electrical network through a rectifier.

The rectifier must be installed in power electronics room and It transforms the AC input voltage into DC (For example 125 Vdc)

Safety electrical power unifilar

The rectifier also powers the battery system.


batteries

The batteries are installed in an independent room, due to theirs hazardous substances


If there was a fail in the electrical network, the battery system will power the direct current system.
Baterías

Note: Usually, the control electrical devices installed in the medium voltage cabinets are powered by the direct current system.

For example in the following drawing, an auxiliary relay is used to control the breaker, this relay will be powered with direct current.


5.10.2. Uninterrupted Power System (UPS)

Uninterruptible Power Supply (UPS) meet a similar function, b
ut it is an alternating current.


Uninterrupted Power System unifilar

Usually, this system is redundant powered.

One from direct current system through an inverter and the other from the essential system.


UPS unifilar


6. REDUNDANT POWER

Redundant power supply increases the availability of the electrical system. Lately, It is very common requirement in all industrial project.

Redundant power supply implies that there are two way to power the electrical devices.

The main way is powering the electrical devices, meanwhile the other way is open (in standby). When a fail is detected in the main way, the main way will open its breaker and the other will power the system.

In the following example there are four devices:

ATS unifilar

- Two main breakers (1 and 2)

- Coupler breaker (3).

- Automatic Transfer System (ATS) (4)

Usually, each bus power theirs loads from theirs main breakers, meanwhile the coupler breaker is open.


ATS automatic transfer switch

If the ATS detect a fail in one side It will open the main breaker (1)  (which had a fail) and It will be closed the coupler breaker (3).

ATS sistema de transferencia automática de barras

Note: ATS Automatic Transfer Switch can be an specific electrical device, but sometimes It is used the main control system.

As earlier pointed out, the scope of the main control system in a industrial plant is the process control, it isn't a safety system. Therefore we recomend install  an specific electrical device.






Thanks to Mr. Javier Iglesias for those clarifications



By: Julio.C Fernández Losa 06/01/2017
